Cone fan

Main performance

※Reasonable cone designing with big air volume, low noise;

※Imported bearing with high-strength, low noise and long service life;

※Shutter is made of PVC or high strength hot-galvanized steel sheet, anti toxicant, light weight and no distortions;

※Belt pulley made of high strength dabber aluminum magnesium alloy, high strength and long service life;

※6pcs of stainless steel blade, mirror designed and injection mould, with big air flow, never distortion and broken;

※High efficient and energy-saving motor, with CCC certificate, IP55, insulation class F.

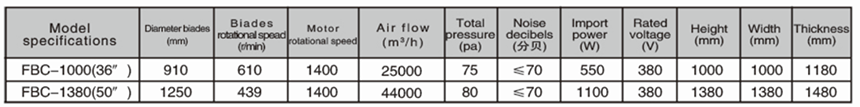

Technical parameter


Spare  parts




Blade is special designed for the biggest efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade. Stainless steel, galvanized and aluminum for option.




Both China famous motor and Siemens motor are available. Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55, insulation class F grade.




Fan bearing adopts imported single-row bearing with special waterproof design, high strength, low noise, maintenance free and long service life.




Belts are Japanese Mitsuboshi brand, ensure the long service life, maintenance free.
